Guangdong Zhaoli Motor Co., ltd
5 Years
| Ask Lasest Price | |
| Brand Name : | Zhaoli |
| Model Number : | DC2430PE03 |
| Certification : | CE, ROHS, REACH |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 10,000pcs per day |
| Delivery Time : | 25-45 days |

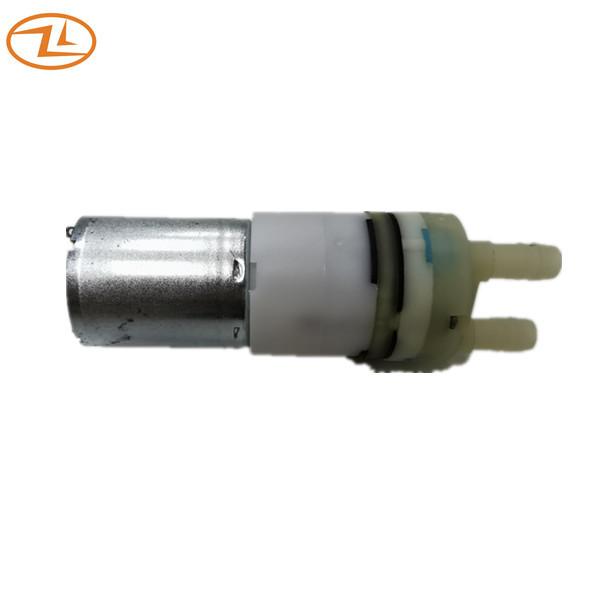

DC Water Mini Pump Air Pump For Waterpik Automatic Teapot Tooth Cleaner
Specification:
| Test Environment | Ambient temperature of 20℃ and relative humidity of 65%RH. |
| Position | Horizontal |
| Load | Air pressure 300mmHg |
| Operating condition | 5℃~45℃, RH 30%~85% |
| Storage condition | -20℃~60℃, RH 30%~85% |
| Rated voltage | 12.0VDC |
| Operating voltage | 9.6 - 14.4 VDC |
| Air flow(free load) | At DC12.0V, the air flow is ≥0.8L/min with no load. |
| Water flow(free load) | At DC12V, the water flow is ≥ 1200mL/min with no load. |
| Rated current | The highest current is less than 400mA while the pump for drawing water. |
| Restart voltage | Operating voltage range gas filled pressure untills -30KPa(30 KPa) pineland then add DC9.6V voltage pump should restart. |
| Noise | The sponge of 5 cm underlying is 30 cm away from the noise meter. The dB value measured by DC 12V power supply pumping is less than 55 dB. |
| Terminal tension | Hanging a 0.5 Kg static load on the terminal of the pump will not cause a damage on the pump. |
| Low-temperature characteristic | Putting the pump in the temperature at negative 20℃ for 72 hours;then taking it out and putting it in a room temperature at 20± 5℃ for 2 hours,Under this circumstance,running through performance test and finding out that the pump still performs well. |
| High-temperature characteristic | Putting the pump in the temperature at 60℃ for 72 hours; then taking it out and putting it in a room temperature at 20 ± 5 ℃ for 2 hours,Under this circumstance,running through perforamance and finding out that the pump still performs well. |
| High-temperature & High humidity | Putting the pump in the temperature at 60℃ and the humidity at 95% for 72 hours;then taking it out and putting it in a room temperature at 20 ± 5 ℃ for 2 hours.Under this circumstance,running through performance test and finding out that the pump still performs well. |
| Temperature & humidity cycle test | After doing the temperature and humidity cycle test,-20℃* 2Hr → +25℃* 1Hr→ +60℃ 85%RH* 2Hr →+25℃*1Hr,for twelve times,the pump shall still perform the same functions proved by running through performance test. |
| Life test | The pump for drawing water, on 60 seconds, stopping for 30 seconds is as one cycle, Doing it for 500 hours, then examine the pump if it is in a good function. |
Drawing:
Application: Tooth cleanier, Waterpik, Automatic Teapot
|
|
