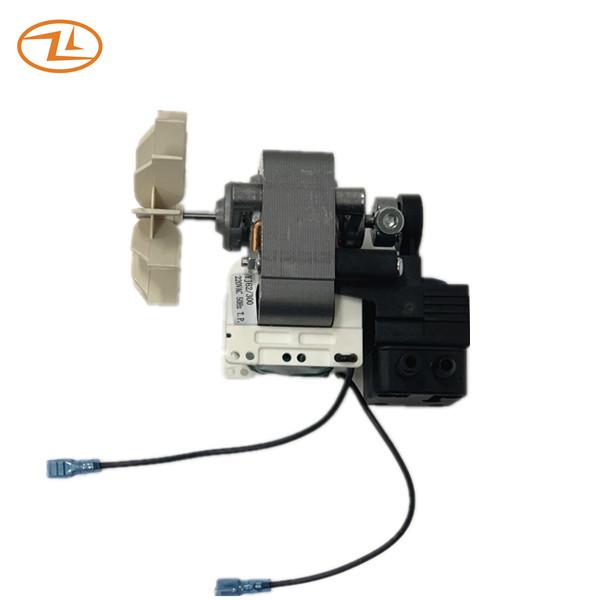

    Vacuum Pump Nebulizer Compressor Motor Long Life 62W 50HZ

    Ask Lasest Price
    Brand Name : Zhaoli
    Model Number : YJ62/300
    Certification : UL, CUL, CE, VDE, CCC, ROHS, REACH
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 300,000pcs per day
    Delivery Time : 20-40 days
    • Product Details
    • Company Profile

    Vacuum Pump Nebulizer Compressor Motor Long Life 62W 50HZ

    Low Noise Long Life Nebulizer Compressor Motor 220V 50HZ Vacuum Pump Zhaoli Motor


    Specification:

    Rated voltage/frequency V/HZ220V 50HZ
    Rated current A0.55A max
    Rated input power W62W max
    Starting voltage V198V max
    Insulation ClassCL.B
    Working air pressure PSI10PSI min
    Rated flow rate L/M4.0L/M min
    Max pressure PSI34PSI min
    Max flow rate L/M14.0L/M
    Rotation DirectionCCW (view from pump side)
    ProtectionThermal protector 140℃
    Piston bearingBall bearing
    Nozzle directionFlexible, it can be four directions
    Insulation resistanceThe cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
    Dielectric strengthIt shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
    LifeAt rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min.


    Drawing:

    Vacuum Pump Nebulizer Compressor Motor Long Life 62W 50HZ


    Application: Vacuum Pump, Piston Compressor nebulizer, Inhaler

    Vacuum Pump Nebulizer Compressor Motor Long Life 62W 50HZ
