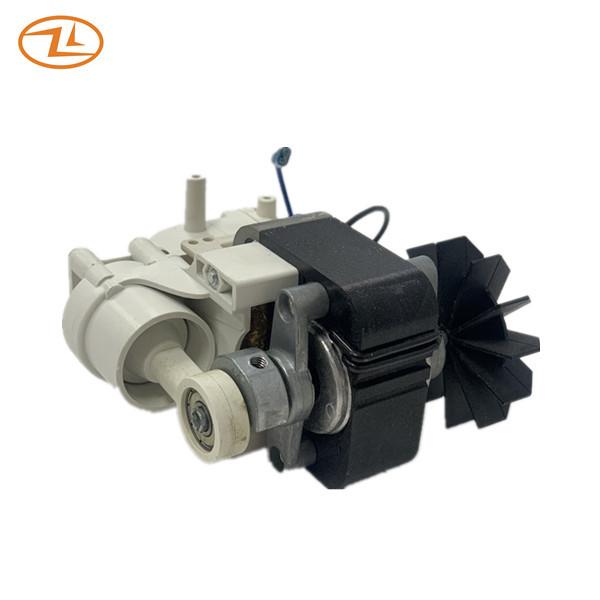

    YJ62 300 60W Low Noise Compressor Motor / 230V 50HZ AC Motor With Silencer

    Ask Lasest Price
    Brand Name : Zhaoli
    Model Number : YJ62-25
    Certification : UL, CUL, CE, VDE, CCC, ROHS, REACH
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 300,000pcs per day
    Delivery Time : 20-40 days
    • Product Details
    • Company Profile

    YJ62 300 60W Low Noise Compressor Motor / 230V 50HZ AC Motor With Silencer

    Low Noise Nebulizer Compressor Nebulizer Motor YJ62/300 230V 50HZ With Silencer


    This pump is specially designed with a silencer part to achieve lower noise.


    Construction:

    Insulation ClassCL.B
    Rotation DirectionCCW (view from pump side)
    ProtectionThermal protector 150℃
    Piston bearingBall bearing
    Nozzle directionFixed
    Cooling fan sizeΦ58mm

    Specification:

    Rated voltage/frequency V/HZ220V 50HZ
    Rated current A0.65A max
    Rated input power W60W max
    Starting voltage V187V max
    Rated speed RPM2500RPM min
    Working air pressure PSI14 PSI min
    Working flow rate L/M4.5L/M min
    Max pressure PSI32PSI min
    Max flow rate L/M14.5 L/M min
    Insulation resistanceThe cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
    Dielectric strengthIt shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
    LifeAt rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min.

    YJ62 300 60W Low Noise Compressor Motor / 230V 50HZ AC Motor With Silencer

    Drawing:

    YJ62 300 60W Low Noise Compressor Motor / 230V 50HZ AC Motor With Silencer


    Application: Air compressor nebulizer

    YJ62 300 60W Low Noise Compressor Motor / 230V 50HZ AC Motor With Silencer
