    24V Desk 3 Phase BLDC Motor FG Signal Customized Specification

    Ask Lasest Price
    Brand Name : Zhaoli
    Model Number : DBT45H4B01
    Certification : CE, ROHS, REACH
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10,000pcs per day
    Delivery Time : 25-45 days
    • Product Details
    • Company Profile

    24V Desk 3 Phase BLDC Motor FG Signal Customized Specification

    24VDC Brushless DC Motor For Desk Fan, Circulator Fan Stand Fan Customized Specification


    Brushless DC Motor is a type of energy-saved motor. It can be mainly divided into two parts, motor and circuit control. Motor is composed of rotor which its main component is permanent magnet and of stator which its main component is silicon steel sheet and copper wire.

    The motor shaft is flexible to be customized.

    • Motor characteristics
    Rated voltage24VDC
    Operating voltage15~26.4VDC
    Rated load33mN.m
    Rated speed(on load)3400+/- 10% RPM
    Rated current(on load)0.5A max
    Rotation directionCW(view from shaft side)
    Working dutycontinuous
    Position detection methodHall element
    Insulation resistance10MΩmin. (500VDC)
    Dielectric strength600VAC/1S leakage current <=5mA
    Temperature rise<65K
    Speed control

    PWM

    PWM frequency: 21KHZ ~ 28KHZ (typical value 25KHZ)

    PWM amplitude: 3.3~5.0V (Min >2.6V, Max <5.5V)

    Duty cycle: 0%, motor stops; 100%, full speed.

    Detecting method of motor speedFG signal

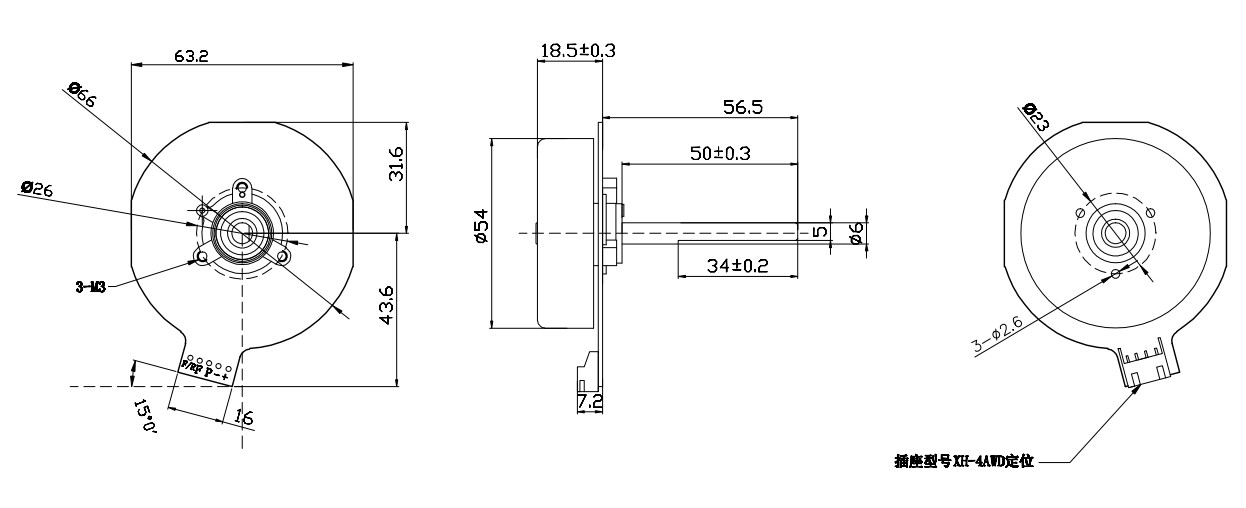

    Drawing:

    24V Desk 3 Phase BLDC Motor FG Signal Customized Specification



    Typical Application: Desk Fan, Circulator fan, Stand fan, Oscilating fan, Table fan

    24V Desk 3 Phase BLDC Motor FG Signal Customized Specification
