Cross Flow Fan 60-180 Blower Fan 220-240V 50/60HZ Tangential Fan For Oven Use

Cross flow fan

The cross-flow air blower is generally made up of drive motors, blowers, shells, operating support connectors, etc. The freely designed mouse cage blower cylinder processed by blades, rotor and the shell form the air flue. The special structure can make the air pass the rotor twice in the centrifugal direction.

The product has the following features:

Low back pressure
Large flow
Low noise
Resist high temperature
Product design concept suitable for complete complanation.

General specification:
Voltage----------------------100-240VAC
Frequency-------------------50/60HZ
Air flow----------------------50-400m/h
Power------------------------5-100W
Insulation Class----------- -A/E/B/F/H
Life----------------------------5000-10000Hours
Pressure----------------------8-165pa
Impeller Diameter-----------φ30-300mm
Impeller Length--------------40-1200mm
Bearing: ball bearing or sleeve bearing
Shell material: Galvanized sheet
Impeller: Aluminum
Material of bearing pedestal/axle connector: silicone

Specification:

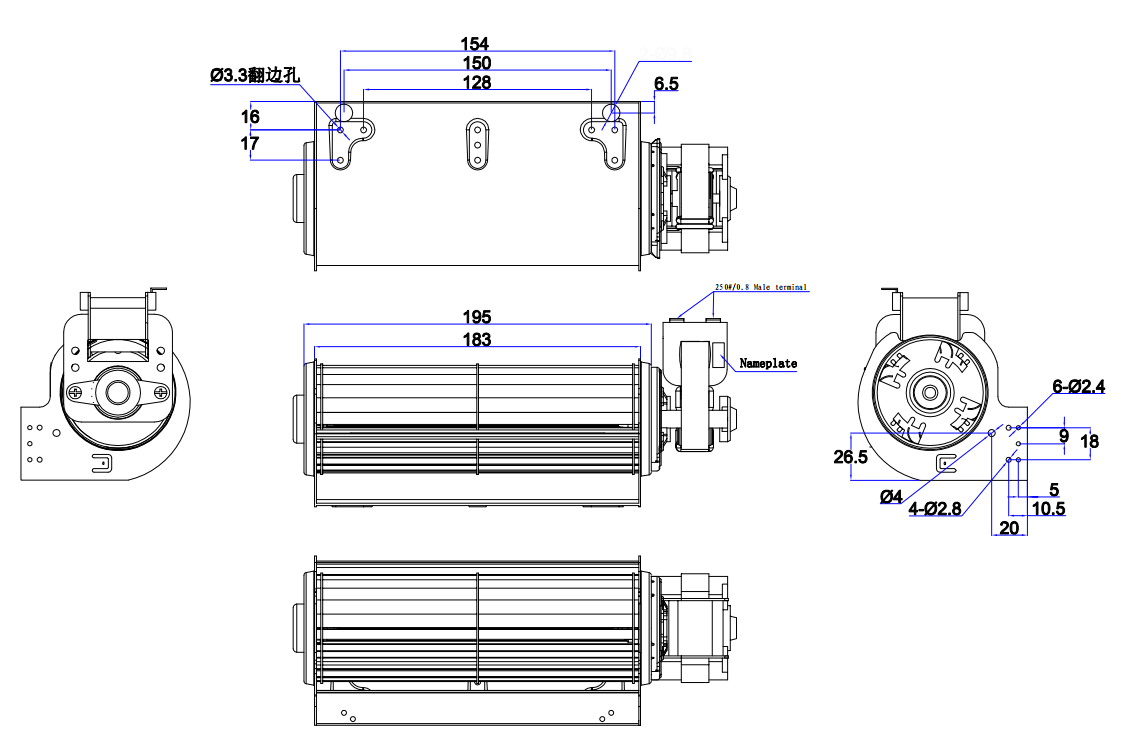

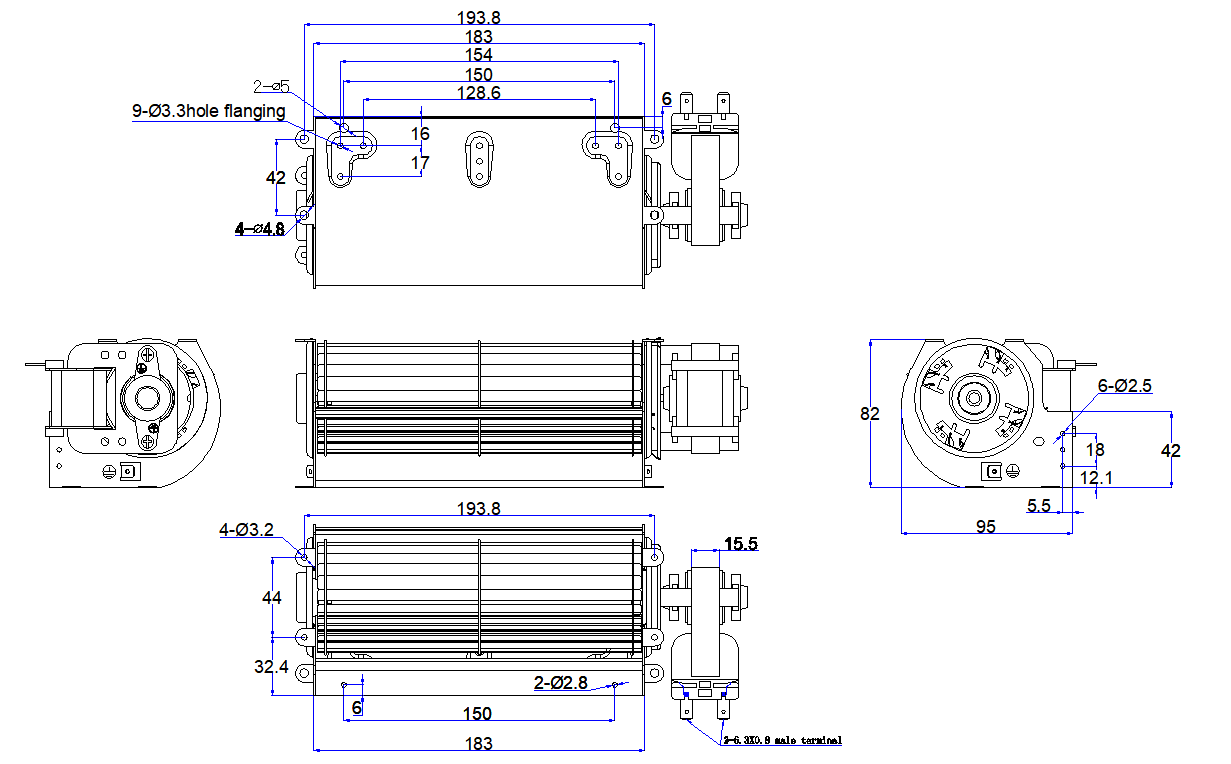

Drawing:
