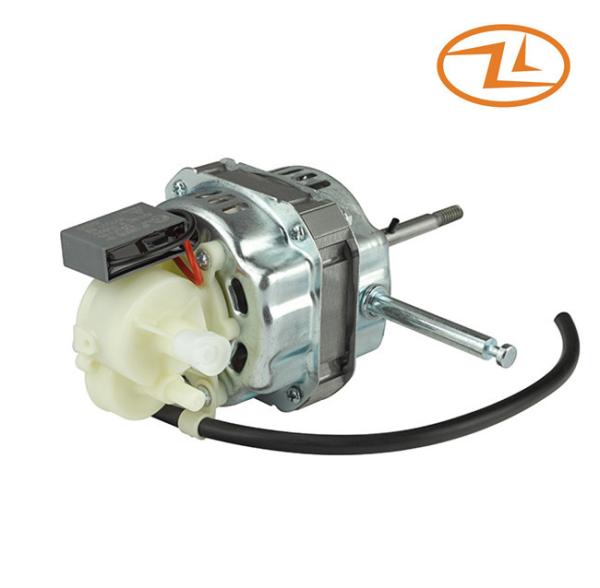

    127V Capacitor Fan Motor Single Phase 25mm thick For 18 Inch Fan

    Ask Lasest Price
    Brand Name : Zhaoli
    Model Number : 78-25
    Certification : CE, CCC, ROHS, REACH
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 300,000pcs per day
    Delivery Time : 20-40 days
    • Product Details
    • Company Profile

    127V Capacitor Fan Motor Single Phase 25mm thick For 18 Inch Fan

    Capacitor Fan Motor 78-25 For 18inch 20inch Fan , Stand Fan


    Capacitor motor is mainly composed of stator, winding, rotor and bracket module. There are two windings for single-phase capacitor motor:
    one is connected directly to the power supply and the other is conneced in series with a capacitor to generate a rotating magnetic field. The capacitors cause a phase shaft between the currents flowing through windings, whose axes are spatially displaced. Maxium toque is developed when the phase shift between the two currents is 90° and the amplitude of the currents is selected such that the rotating gield becomes circular.


    Characteristics:
    Low noise, stable operation, long life, no electromagnetic interference.


    It is flexible in stack thickness, shaft dimension, bearings and fitting dimensions.


    Specification:


    Model


    Rated Voltage/ Frequency

    V/HZ

    Free LoadOn Load (18inch fan)

    Current

    A


    Input power

    W

    Current

    A

    Input power

    W

    Speed

    RPM

    78-25127600.50550.71891500
    0.40370.58731100
    0.3629.50.45164800
    78-25220500.19370.25551150
    0.1627.50.2248950
    0.1420.50.1841650


    Drawing:


    Application: Stand fan/Oscilating fan/Floor fan
