Brand Name : | Zhaoli |
Model Number : | ZL190A-44-140-XX |
Certification : | CE, ROHS, REACH |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 2,000pcs per day |
Delivery Time : | 25-45 days |

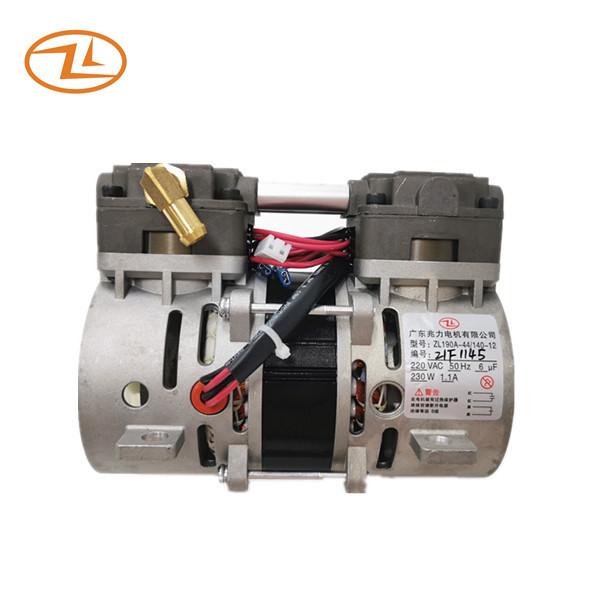

Oilless Air Compressor For Oxygen Concentrator 3L Low Noise 230W Piston Pump
Application: Suitable for Vacuum, Laboratory, Medical and medical cosmetology,
Vacuum packaging, Electronic equipment, Automation, Textile and so
on.
- Often for Oxygen generator 3L
Specification:
Model | ZL190A-44-140-XX |
Rated voltage/frequency V/HZ | 120V/ 60HZ |
Rated speed RPM | 1650RPM |
Rated input power W | 240W |
Working pressure Kpa | 140kpa |
Rated air flow L/M | >=44L/M |
Noise | <60dbA |
Insulation resistance | The cold insulation resistance shall be more than 100MΩ(tested by DC 500V megger) |
Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
Drawing:
![]() |
