Brand Name : | Zhaoli |
Model Number : | YJ62/200 |
Certification : | UL, CUL, CE, VDE, CCC, ROHS, REACH |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 300,000pcs per day |
Delivery Time : | 20-40 days |

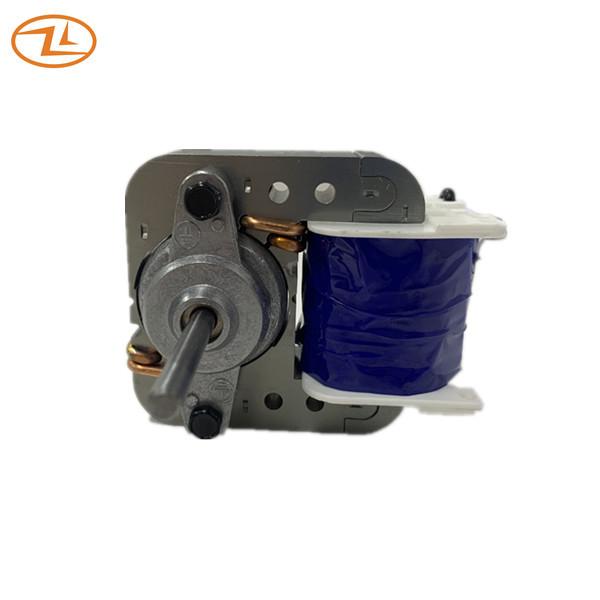

Shaded Pole Motor Zhaoli Motor Fan Motor YJ62/200 For Cooling Purpose Long Life
Specification:
Model | Rated Voltage/ Frequency V/HZ | On Load (fan blade) | ||||
Start-up voltage V | Current A | Input power W | Speed RPM | |||
YJ62/200 | 120 | 60 | <207 | <0.12A | <56W | >2400 |
Working Temp. | 0~40℃ |
Working humidity | 90% RH max |
Voltage fluctuation | 5% range of the rated voltage at rated load |
Insulation resistance | The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger) |
Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
Drawing:
Application: Cooling fan, Water dispenser
![]() |
