Guangdong Zhaoli Motor Co., ltd
5 Years
| Ask Lasest Price | |
| Brand Name : | Zhaoli |
| Model Number : | DBT45H4B01 |
| Certification : | CE, ROHS, REACH |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 10,000pcs per day |
| Delivery Time : | 25-45 days |

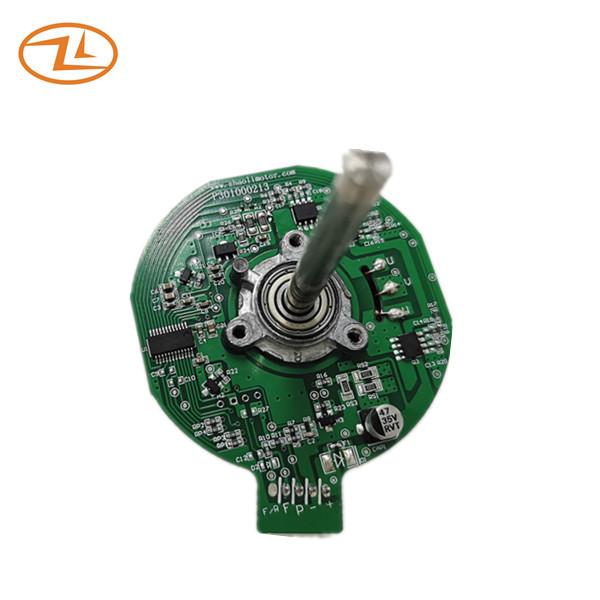

BLDC Fan Motor For Circulator Fan Table Fan 24VDC Electronic Control Brushless DC Motor
This is one type of Brushless DC motor, mainly applied in fans (table fan, oscilating fan, circulator fan)
| Rated voltage | 24VDC |
| Operating voltage | 15~26.4VDC |
| Rotation direction | CW(view from shaft side) |
| Operating condition | 0℃~40℃, RH 15%~90% |
| Storage condition | -20℃~60℃, RH 15%~90% |
| Power supply current capacity | 2A |
| Rated voltage | 24VDC |
| Operating voltage | 15~26.4VDC |
| Rated load | 33mN.m |
| Rated speed(on load) | 3400+/- 10% RPM |
| Rated current(on load) | 0.5A max |
| Rotation direction | CW(view from shaft side) |
| Working duty | continuous |
| Position detection method | Hall element |
| Insulation resistance | 10MΩmin. (500VDC) |
| Dielectric strength | 600VAC/1S leakage current <=5mA |
| Temperature rise | <65K |
| Speed control | PWM PWM frequency: 21KHZ ~ 28KHZ (typical value 25KHZ) PWM amplitude: 3.3~5.0V (Min >2.6V, Max <5.5V) Duty cycle: 0%, motor stops; 100%, full speed. |
| Detecting method of motor speed | FG signal |
Drawing:
Typical Application: Circulator fan, Oscilating fan, Table fan,
Stand fan
|
|
